WT 5915C-T2060M5 Wave Absorbing Pad

WT5915C-T2060M5 The product is a high-performance heat-conducting and wave-absorbing material, which can be directly used between heat sources and radiators. At the same time, it can absorb the leaked electromagnetic radiation and eliminate the electromagnetic interference. It provides a good solution for electronic communication products in terms of heat conduction and electromagnetic.

Product characteristics:

● 2.0W/m-K thermal conductivity

● Excellent wetting interface effect

● It is soft and flaky at normal temperature, easy to operate and excellent rework

● It can effectively absorb EMI at the frequency of 2~18GHz

Application area:

● Commercial communication: antenna, base station, optical template, router, switch, etc

● Millimeter wave applications: 5G communication, millimeter wave radar

● Industrial electronics: automotive electronics, UAV, etc

● Instrument measurement: power amplifier, filter, test system

● Security and national defense: radar system, aerospace, etc

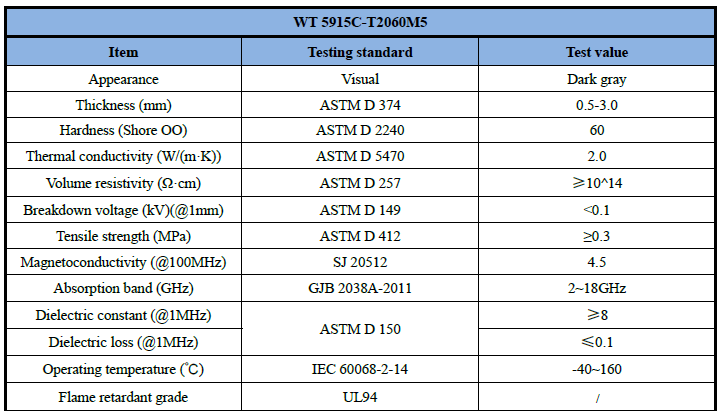

Performance description:

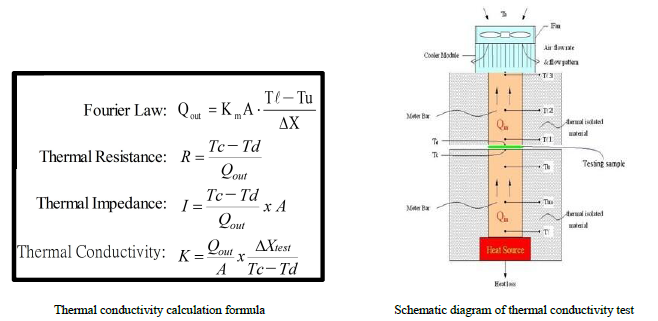

Thermal conductivity test information, calculation formula and schematic diagram:

● Test standard: ASTM D5470

● Test equipment: LW 9389

● Measuring end size: 25.4*25.4mm

● Test sample size: 27*27mm

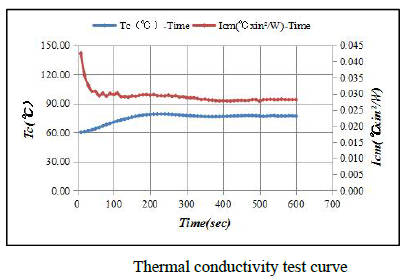

Thermal conductivity test curve:

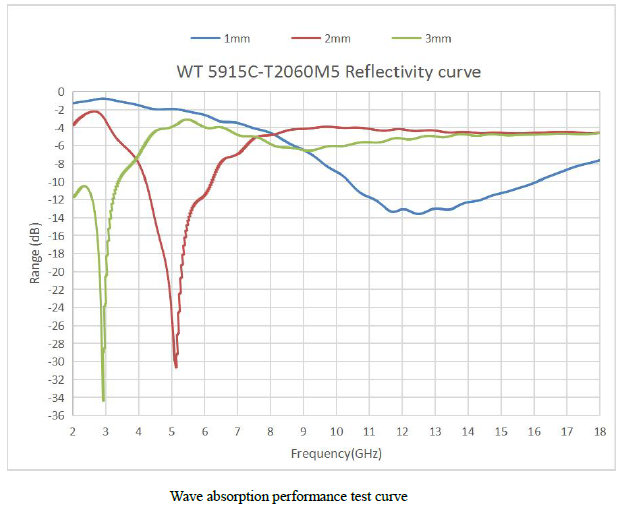

Wave absorption performance curve

Operation:

● The product can be assembled by covering the heating end at normal temperature;

Packaging and storage:

● Specification: customized.

● Shelf life 12 months under low temperature storage.

Notes:

● The factory reserves the right to modify the product data.
