How does ipadPro dissipate heat?

The new electronic products come out on market every fall apart from the iPhone series, just is the iPad series.
IPad is the intermediate product between smart phones and notebook computers, with more and more powerful functions, chase and play games, and even the drawing function added in the last two years, it has expanded work and entertainment performance.

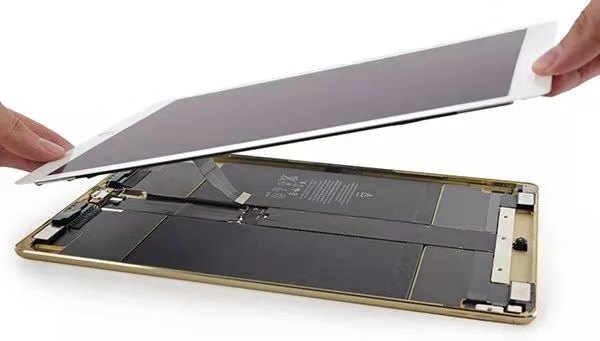

Let's take a look at the internal structure. How many black technologies are there?

Electronic mask layer of motherboard

The role of this thin layer is not only to protect the motherboard, but also to hide the cable connector, and also to fix the motherboard on the iPad Pro back case.

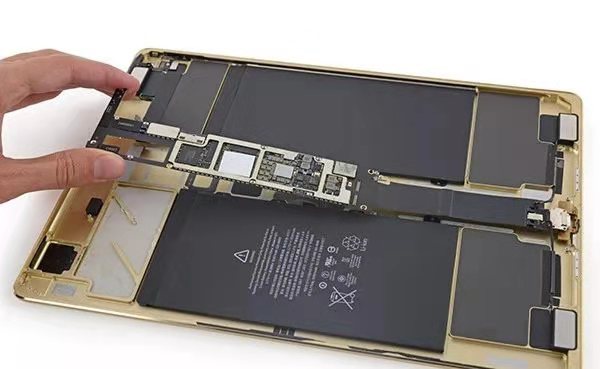

Its motherboard is located in the center of the interior, and the display cable is also connected in the center. The components on the motherboard are relatively dense, with processors, 2 memories, flash memory, gyroscope and accelerometer combination, Wi-Fi modules, controllers, and audio codecs, etc.

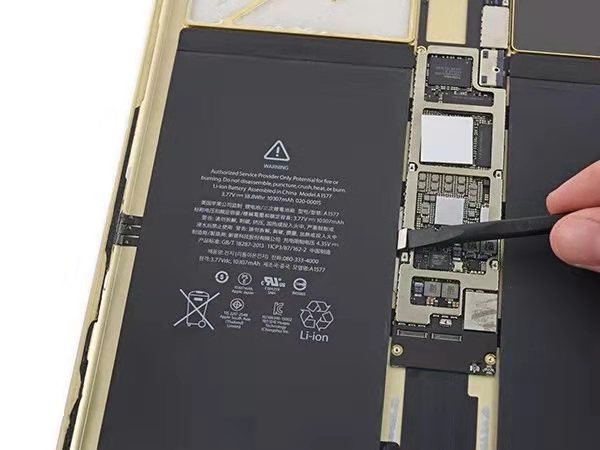

As tablet PCs become thinner and slimmer, they need to use passive cooling, so thermal pad can be seen on the processor for heat conduction. The thermal pad has a certain ductility, can fill the gap, and has elasticity, which can play the function of shock absorption and component protection.

What kind thermal pad can be used on tablets?

Recommended models

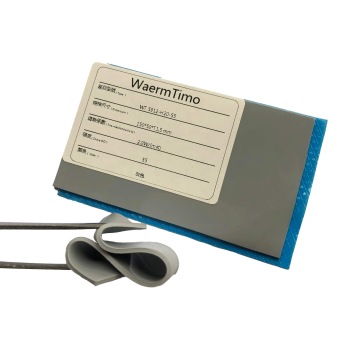

WT5912 series thermal pad
Model: WT5912-H20-55; WT5912-H25-40

Waermtimo researched and developed TIM's new high-strength thermal pad, which is a thermally conductive sheet with high mechanical strength, elongation rate> 300%, high toughness, thermal conduction and shock absorption at the same time. It can not be fractured and can tightly integrate irregular or complex surfaces, has excellent interface filling and can be used repeatedly. Temperature resistance range -50 ~ 200 ℃, applicable to a wide range of power equipment, automotive electronics, communication equipment, network terminals, storage devices, handheld, wearable, mobile terminal products between the internal chip and the radiator. This series pad can be used to solve the problem of heat conduction and heat dissipation. At the same time, it can also be applied to the housing of some electronic products, which has the functions of heat dissipation, insulation, dust resistance and water resistance.

WT5902 series thermal pad
Model: WT5902-D40-40; WT5902-D45-40
Thermal conductivity range: 4W, 5W, 6W, 7W, 8W

WT5902 series thermal pads can solve the problem of tolerance changes when design the product structure, and can be reused. They are vertical heat transfer material between heat source (CPU or electronic chipset) and heat sink. Have good insulation and mechanical properties, can tightly integrate irregular or complex surfaces, easy to use and easy to remove. They are widely used in power supply equipment, automotive electronics, communication equipment, network terminals, storage devices, consumer electronics and other fields.
